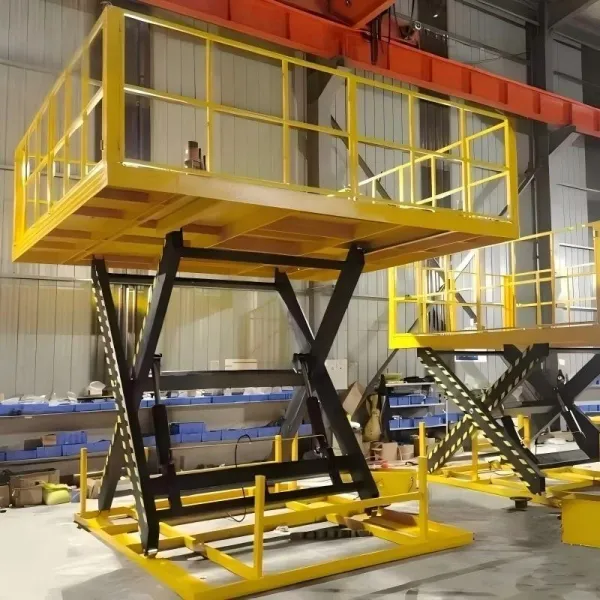

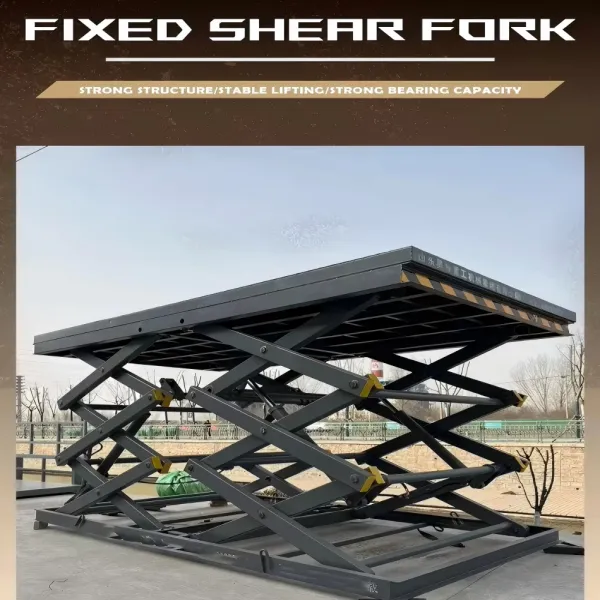

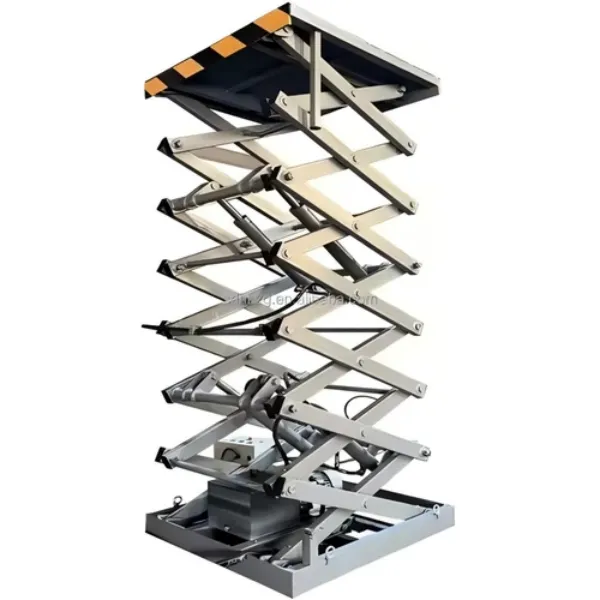

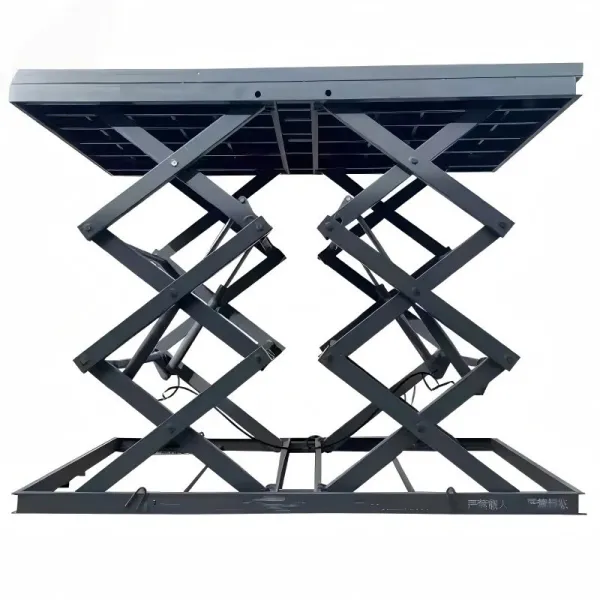

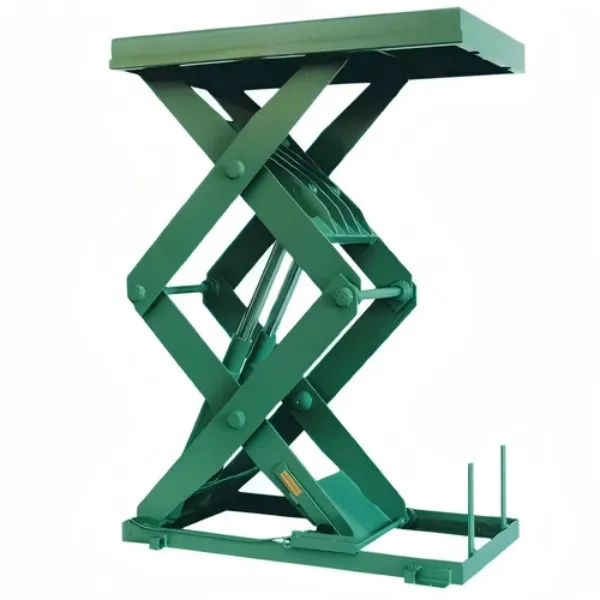

Fixed Hydraulic Scissor Lifting Platforms are divided into single scissor lift platforms, double scissor lift platforms, and multi-scissor lift platforms. Scissor lift platforms are available in standard models with load capacities ranging from 400 kg to 4000 kg and maximum platform heights ranging from 1 meter to 4 meters.
Fixed Hydraulic Scissor Lifting Platforms have the characteristics of simple structure, large load capacity, smooth lifting, and easy installation and maintenance.
This series of products is mainly used in production lines of industrial and mining enterprises and the pharmaceutical industry. It can also be used as a delivery elevator to transport goods in other industries. It can be customized according to the parameters required by customers.
-
Lifting Cylinder: customized cylinder, 3 sets of imported seals per cylinder, and tested; faster lifting speed and larger cargo capacity. -
Power Unit: Power is transmitted through hydraulic oil, with greater stability and load capacity; The hydraulic pump station is equipped with a reverse cut-off device to prevent oil back flow and emergency descent of the platform. -
Controller: The button box is a physical button, making it more convenient to operate; the control wire uses 24V low voltage, which is safer, and the connection method is plug-in, with overall assembly. -
Safety Protection: Optional mesh guardrails, protective doors, interlocking of floor doors, etc.; warning lights can also be installed to inform that the scissor lift is working. -
Scissor Support Rod: High-strength steel is used, and composite sleeves are added to the support rod sleeve to enhance stability and reduce friction. -
Platform Table Size: The platform table size can be customized according to the installation site location space or cargo size. The table is paved with anti-slip patterned plates, and the height and type of the table fence can be customized.
