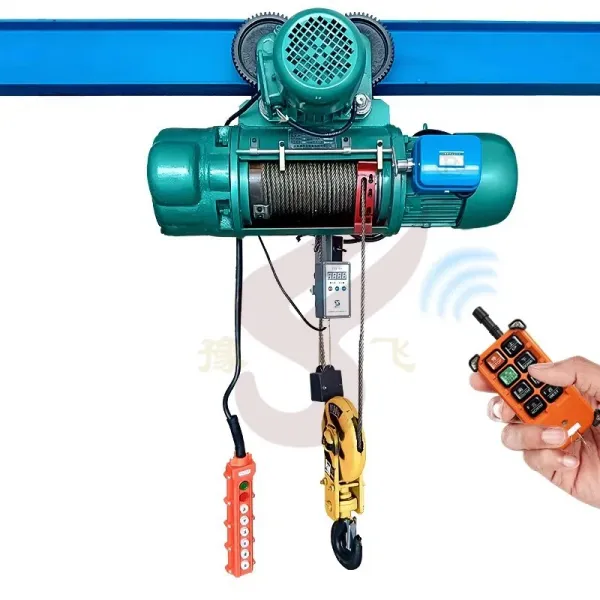

CD1MD1 type electric hoist is a small-sized lifting equipment, which can be mounted on single beam, overhead, gantry and Jib cranes. With slight modification, it can also be used as a winch. It is widely used in factories, mines, harbors, warehouses, cargo store areas and shops. CD1MD1 type electric hoist is common type. It is made of wire rope. It is essential in raising working efficiency and improving working conditions.

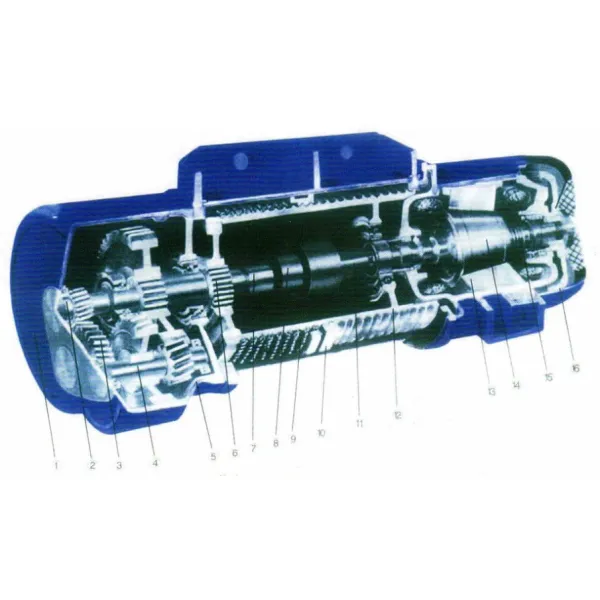

1. Gear box Cover 2. The First Shaft 3. The Second Shaft
4. The Third Shaft 5. Box Body 6. Hollow Spindle
7. Rigid Coupling 8. Intermediate Shaft 9. Wire rope
10. Rope guide 11. Flexible coupling 12. Winding drum
13. Stator 14. Rotor 15. Return spring
16. Brake
The lifting speed of CD1 electric hoist is constant speed, suitable for general use requirements. The motor adopts a conical rotor motor, which integrates power and braking force.
The MD1 electric hoist has two lifting speeds, the normal speed is the same as the CD1 type, and there is also a slow speed, which is suitable for situations that require fine adjustment of work, especially for situations with special requirements for lifting speed. It has the characteristics of light weight, simple structure, novel form, and smooth operation. When equipped with a running car, it can perform straight reciprocating motion and curved cyclic motion in the horizontal direction. Multiple specifications, support customization
