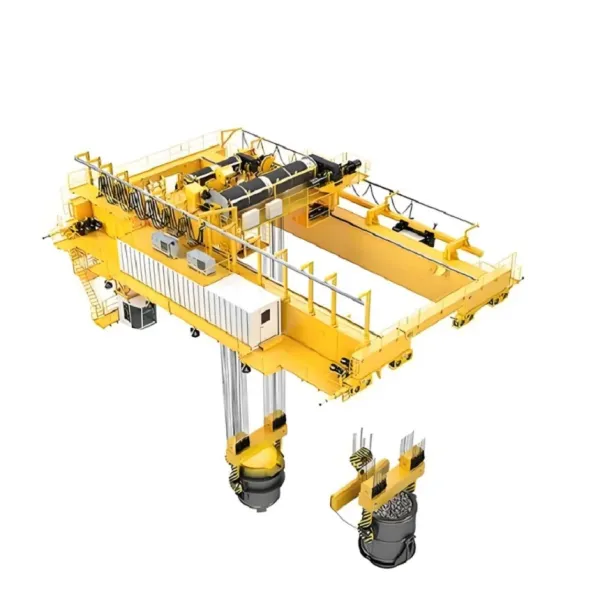

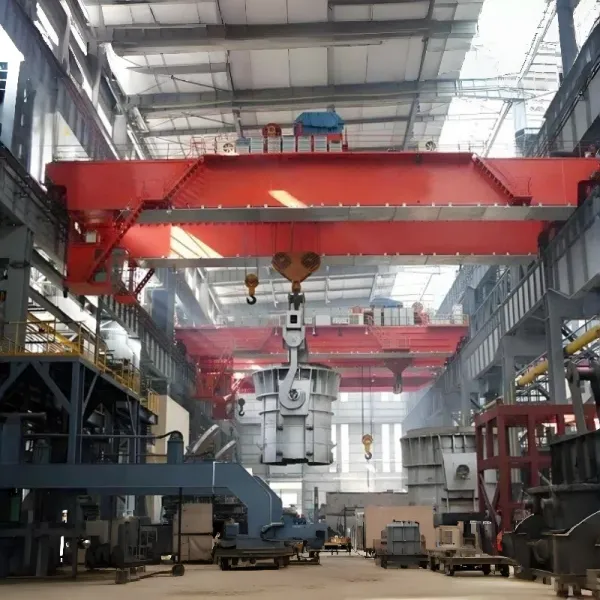

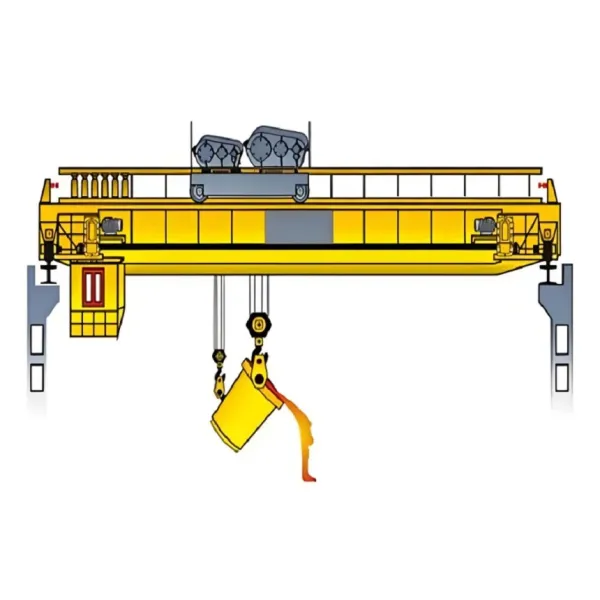

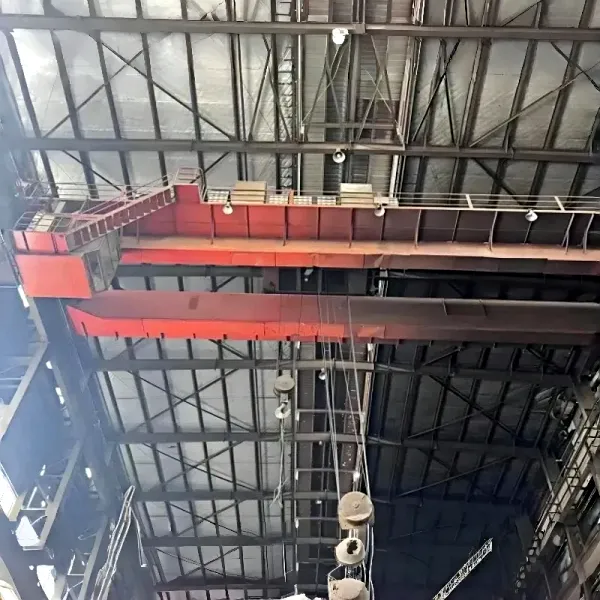

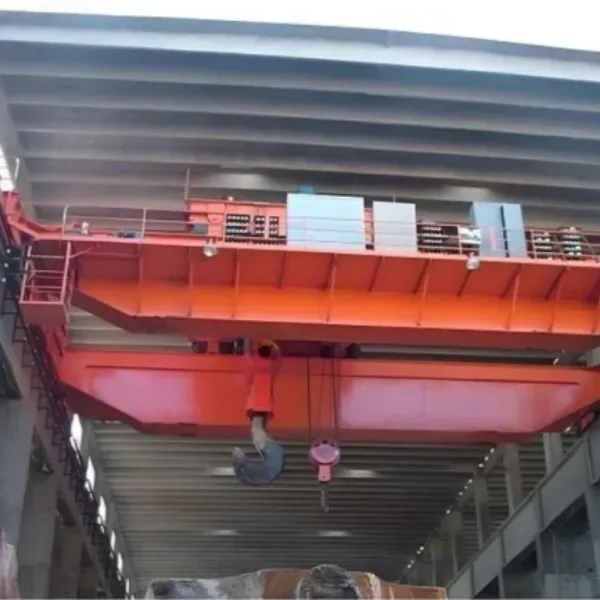

QDY type metallurgical bridge crane is used in the heat and high dust severe environment and lifting molten metal frequently with working duty A7. Main working process: used in converter adding material bay to charge hot metal to the converter and lift hot metal in refine bay to refine furnace or molten steel bay that lift molten steel to ladle turret. The crane is comprised of the bridge, trolley, long travel system, electrical equipment, etc. All of work operation can be finished in the cabin.
High lifting capacity: The design and manufacturing of QDY type metallurgical bridge crane emphasizes high lifting capacity, which can handle lifting tasks of large and heavy materials.
Large span and wide adaptability: This crane has a large-span design that can cover large work areas and is suitable for various industrial scenarios.
Stability and rigidity: The double beam structure design enables the crane to have high stability and rigidity, and can maintain smooth operation under heavy loads.
Efficient and precise control: Equipped with a sophisticated control system, it can achieve precise operation and efficient lifting operations, improving work efficiency.
Safe and reliable: The crane adopts multiple protective devices and safety control systems to ensure safety and reliability during operation, and reduce the risk of accidents.
Durable and easy to maintain: Using high-quality materials and structural design, it provides durability and reliability, while relatively simple maintenance extends its service life.
Flexibility and versatility: Cranes can be configured and adjusted according to specific task requirements to meet different lifting needs.
-
Trolley Final Drives gears are made with heat-treated carbon steel offering greater strength; Precision needle bearing used in high-load areas offers lower friction level and longer life,Safety durable hook keeps the loads -
Reducer Smooth operation and low noise; Long service life and high load-bearing capacity; easy to install. -
Ladle Strong material, corrosion resistance and high temperature resistance. it is a high quality choice for metallurgical cranes. -
Main Girder Welded Construction; Lower dead weight, High degree of vertical and horizontal rigidity; Smaller wheel loads. -
Hook Special hook for casting crane, high strength high temperature resistance and long service life. -
Cabin Open and closed, High-strength frame; The decoration is made of medium density board and aluminum plastic plate or with the steel plate riveting
