YZ Type Casting Bridge Crane

Authentication mark:

Capacity:

Lifting Height:

Span:

Voltage/Hertz:

Working Class:

Sling available:

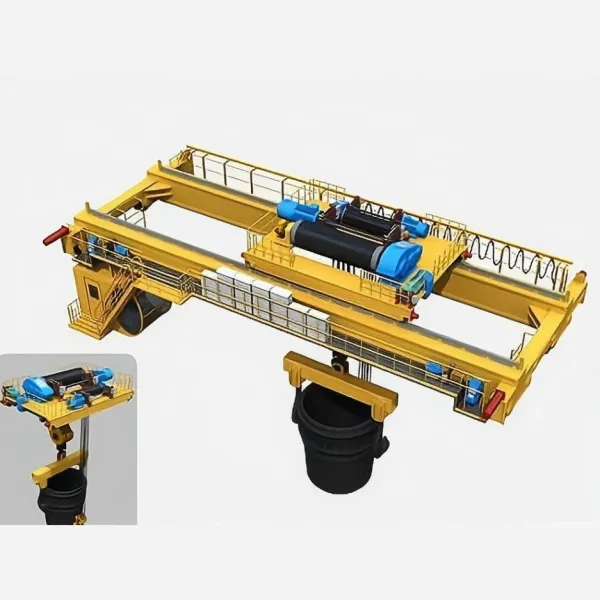

Apply : The YZ Type casting bridge crane is a core specialized equipment in the steel and metallurgical industry, primarily used for the safe hoisting of high-temperature molten metals, such as molten steel and molten iron. It features a robust double-girder or quadruple-girder structure and redundant safety designs, providing exceptional stability and a high safety rating. It is a key piece of machinery that ensures the efficiency and safety of modern steelmaking processes.

SUBMIT

RELATED PRODUCTS

Product Overview

With its robust structure, redundant safety features, specialized heat insulation protection, and advanced electrical control system, the YZ Type casting bridge crane is essential for ensuring safety and improving efficiency in steel and metallurgical processes. When selecting a crane, it is crucial to fully consider the specific working conditions and process requirements of your workshop and communicate thoroughly with professional manufacturers. This ensures the selected crane not only meets production demands but also maximizes operational safety.

Product Feature And Application

Features of the YZ casting bridge crane：

The design of the YZ casting bridge crane fully addresses the special requirements of the metallurgical industry:

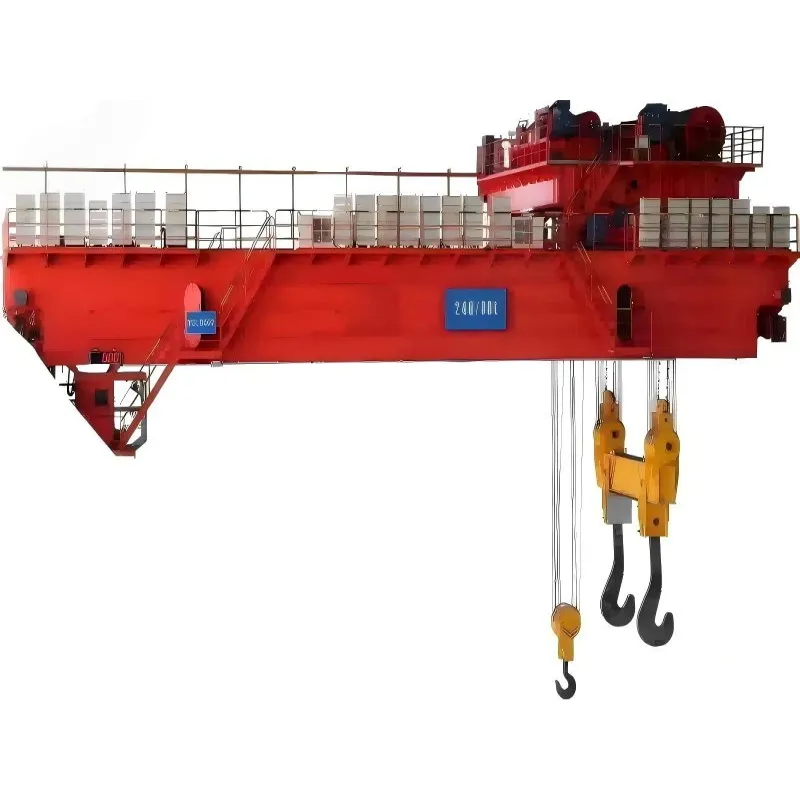

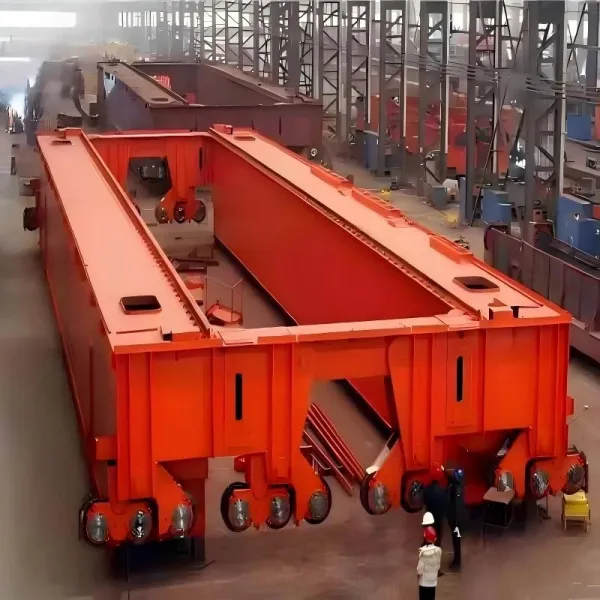

Robust Structural Design: Utilizes a double-girder or quadruple-girder structure to ensure stability and reliability under heavy loads and high-temperature environments.

Multiple Safety Protections:

·Overspeed Limit Switch: Prevents the hoisting mechanism from exceeding speed limits.

·Electronic Scale and Overload Limitation System: Displays the load weight in real time and triggers an alarm or cuts off operation in case of overload.

·Dual or Multi-Drive Systems: The main hoisting mechanism may employ two independent winch systems, allowing one set to complete the cycle temporarily if the other fails. The trolley travel mechanism often adopts a four-corner driving configuration.

Emergency Stop System.

Special Heat Insulation Protection: Heat shields are installed under the main girder to reduce thermal radiation from molten metal. The electrical room on the girder may also be insulated with rock wool and equipped with cooling fans.

Advanced Electrical Control and Monitoring:

·PLC Control: Enables precise speed regulation and control of all mechanisms.

·Fault Diagnosis, Display, and Recording Functions.

·Weight Display: Available in the operator's cabin and on the bridge.

Flexible Operation Modes: Supports cabin operation, remote ground control (wireless), and ground pendant operation.

Various optional functions: Advanced features such as spreader rotation, adjustable hook distance of the spreader beam, and anti-collision systems for cranes operating in the same span can be provided based on user requirements.

Applications of the YZ casting bridge crane：

The YZ casting bridge crane is an indispensable key equipment in modern steelmaking workshops, with applications spanning multiple processes:

Converter Charging Bay: Charging molten iron into the converter.

Refining Bay: Transporting molten steel to the refining furnace.

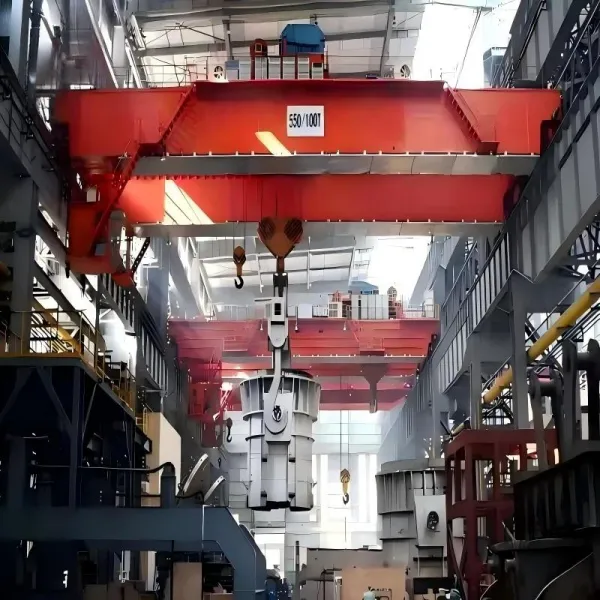

Steel Ladle Bay/Continuous Casting Bay: Transferring molten steel to the continuous casting turret (ladle turret).

Ladle Handling, Tilting, and Slag Disposal: Tasks including transporting, weighing, and tilting ladles, as well as dumping slag and residual steel.
